MARINI MR-A LINE

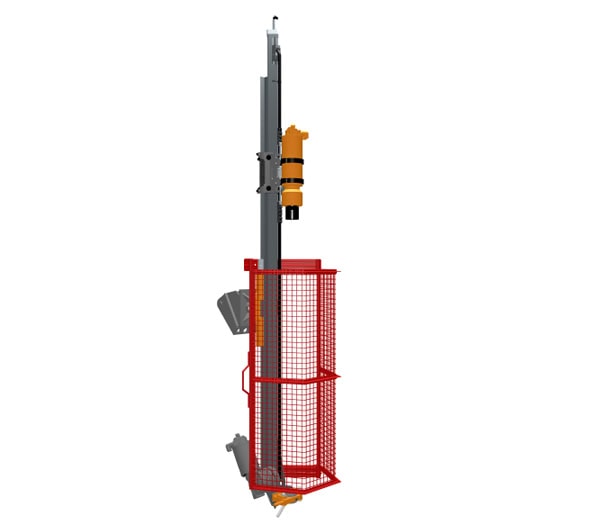

MARINI MR-A MCDP
The MR-A MCDP pneumatic unit is designed to be installed on excavators starting from 2 tons, telehandlers, and telescopic cranes. Equipped with a manual control unit, this attachment is the optimal solution for small diameter drilling.
SPECIFICATIONS
| Excavator Range | 1 / 1.5 Tons |
| Retract force | 950 – 1250 daN |
| Max. Clamp Passage | – |
| Weight | 200 / 350 kg |
MARINI MR-A MCDP 80
The MR-A MCDP pneumatic unit is designed to be installed on excavators starting from 2 tons, telehandlers, and telescopic cranes. Equipped with a manual control unit, this attachment is the optimal solution for small diameter drilling.
SPECIFICATIONS
| Excavator Range | 1 / 1.5 Tons |
| Retract force | 950 – 1250 daN |
| Max. Clamp Passage | – |
| Weight | 200 / 350 kg |
MARINI MR-A PN
The MR-A PN pneumatic unit is designed to be installed on excavators starting from 8 tons, telehandlers, and telescopic cranes. Equipped with a manual control unit, this attachment is the larger pneumatic attachment of the line for small diameter drilling
SPECIFICATIONS
| Excavator Range | From 8 Tons |
| Retract force | 2500 daN |
| Max. Clamp Passage | – |
| Weight | 700 – 1300 kg |
MARINI MR A 80
The MR-A 80 attachment unit is designed to be installed on mini excavators starting from 3 tons. Equipped with a manual control unit, this attachment is the optimal solution for small diameter drilling
SPECIFICATIONS
| Excavator Range | From 2 Ton |
| Retract force | 1000 daN |
| Max. Clamp Passage | 115 mm |
| Weight | 300 – 500 kg |

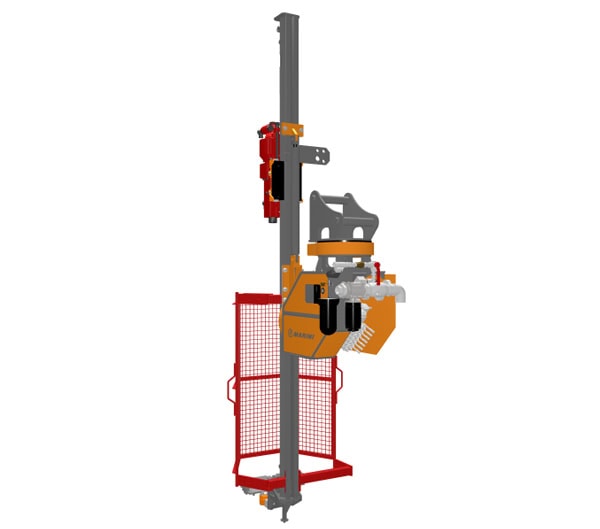

MARINI MR-A 80 COMPACT
The MR-A 80 COMPACT hydraulic unit is the smallest radio-controlled drilling attachment in our line, designed for installation on excavators starting from 6 tons, spider excavators, telehandlers, and telescopic cranes.
SPECIFICATIONS
| Excavator Range | From 5 Ton |
| Retract force | 1000 daN |
| Max. Clamp Passage | 115 mm |
| Weight | 500 – 700 kg |
MARINI MR-A 100
The MR-A 100 attachment unit is designed to be installed on mini and midi excavators starting from 5 tons. Equipped with a manual control unit, this attachment is the optimal solution for small diameter drilling.
SPECIFICATIONS
| Excavator Range | From 6/10 Ton |
| Retract force | 1500 daN |
| Max. Clamp Passage | 188 mm |
| Weight | 500 – 850 kg |

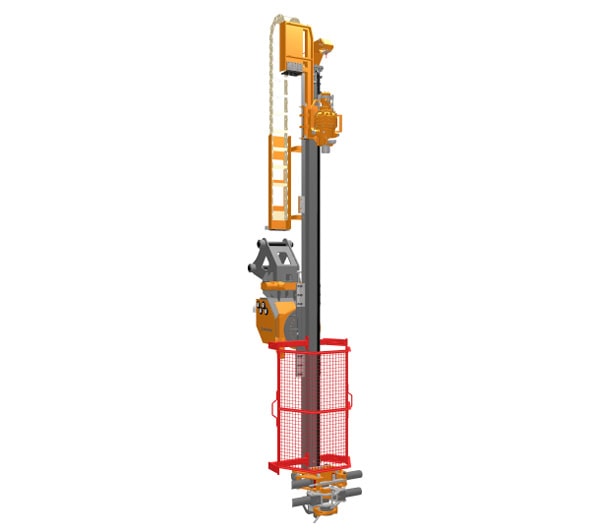

MARINI MR-A 100 COMPACT
The MR-A 100 COMPACT hydraulic power unit is the mid-range model in the compact line. This fully radio-controlled unit is designed for installation on excavators starting from 8 tons, spider excavators, telescopic handlers, and telescopic cranes.
SPECIFICATIONS
| Excavator Range | From 8 Ton |
| Retract force | 1500 daN |
| Max. Clamp Passage | 188 mm |
| Weight | 800 – 1100 kg |
MARINI MR-A 150
The MR-A 150 is the most compact attachment in the heavy-duty series, designed to deliver high performance while maintaining a compact size. This unit is specifically designed for installation on excavators starting from 15 tons, spider excavators, and telescopic handlers, ensuring versatility and power even in confined spaces.
SPECIFICATIONS
| Excavator Range | From 15 Ton |
| Retract force | 2500 daN |
| Max. Clamp Passage | 188 mm |
| Weight | 900 – 1400 kg |
MARINI MR A 250
The MR-A 250 is one of the two intermediate attachments in the heavy-duty series, designed to deliver superior performance while maintaining a compact design.
SPECIFICATIONS
| Excavator Range | From 15 Ton |
| Retract force | 3500 daN |
| Max. Clamp Passage | 188 – 230 mm |
| Weight | 1800 – 2300 kg |
MARINI MR-A 300
The MR-A 300 is the largest mast in the intermediate series, designed to deliver high performance and exceptional adaptability. It is applicable to excavators starting from 18 tons and spider excavators, ensuring excellent performance across a wide range
SPECIFICATIONS
| Excavator Range | From 18 Ton |
| Retract force | 5000 daN |
| Max. Clamp Passage | 310 mm |
| Weight | 2500 – 3500 kg |
MARINI MR-A 500
The MR-A 500 is one of three units in the heavy duty series designed for installation on 25-ton excavators. Thanks to its renowned power and versatility, the MR-A 500 is capable of tackling a wide range of medium to large applications
SPECIFICATIONS
| Excavator Range | Da 25 Ton |
| Retract force | 6000 daN |
| Max. Clamp Passage | 310 mm |
| Weight | 3500 – 4500 kg |
MARINI MR-A 800
The MR-A 800 is currently the largest unit in the heavy-duty line, delivering unmatched power. Extremely robust and equipped with accessories that enable the installation of large-diameter micropiles, this machine is designed for installation on excavators starting from 35 tons.
SPECIFICATIONS
| Excavator Range | Da 30 Ton |
| Retract force | 8000 daN |
| Max. Clamp Passage | 520 mm |
| Weight | 5500 – 7000 kg |
MARINI Quarries Group MR Line
Click below to see our other models:
MR LINE
hydraulic portable drilling rigs, perfect for rope access drilling, slopes, consolidation, anchors.
MR-A LINE
hydraulic & pneumatic drilling mast attachments suitable for excavators & tele-handlers.
MR-C LINE
crawler drilling rigs suitable for micro-drilling operations in civil engineering and foundation.
MR-P LINE
compact and versatile crawler piling rigs for bored piling using the Kelly Bar system.
