MARINI MR-P LINE

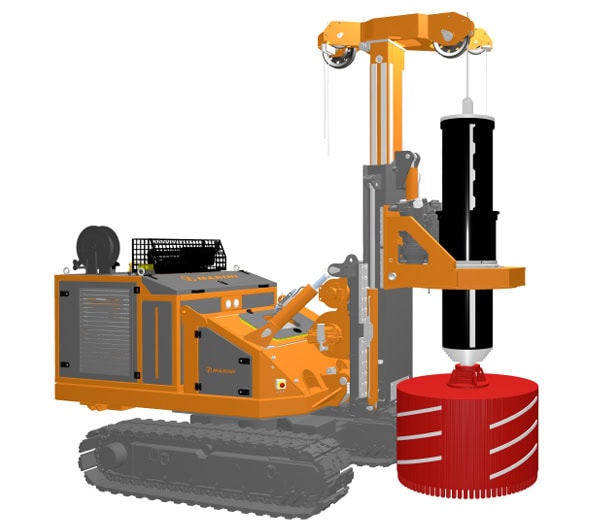

MARINI MR-P 350

The MR-P 350 is the most compact piling rig in the MR-P Line, offering power and precision in a compact and efficient solution. Equipped with a 75 Hp engine and an operating weight of 9 tons, the MR-P 350 stands out for its unmatched strength and productivity.

SPECIFICATIONS

Engine Power55 Kw
Max. diameter – Kelly Bar450-1200 mm (under mast)
450-850 mm (front mast)
Max. depth – Kelly Bar27 m (9 elements)
22 m (7 elements)
Max. diameter – CFA750 mm
Max. depth – CFA11 m
Kelly Bar configuration weight16.300 Kg
CFA configuration weight17.500 Kg
Weight9000 kg
Learn More

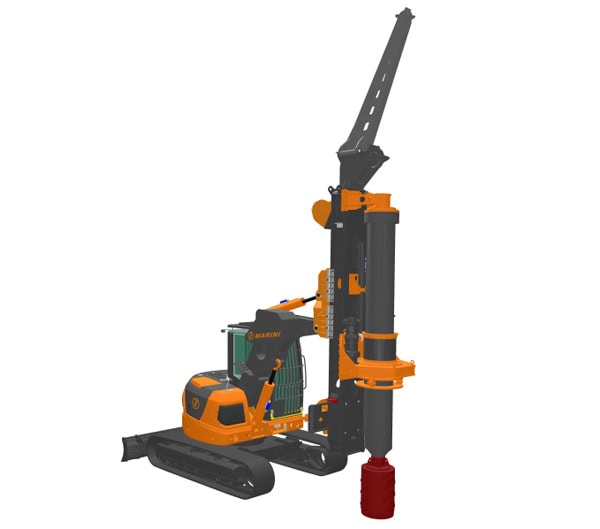

MARINI MR-P 400 BP

The MR-P 400 is a compact and versatile large-diameter piling rig, designed to deliver high performance even in the most challenging conditions.

SPECIFICATIONS

Engine Power55 Kw
Max. diameter – Kelly Bar450-1200 mm (under mast)
450-850 mm (front mast)
Max. depth – Kelly Bar27 m (9 elements)
22 m (7 elements)
Max. diameter – CFA750 mm
Max. depth – CFA11 m
Kelly Bar configuration weight16.300 Kg
CFA configuration weight17.500 Kg
Learn More

MARINI MR-P 400 CFA

The MR-P 400 is a compact and versatile large-diameter piling rig, designed to deliver high performance even in the most challenging conditions. Thanks to its innovative design, this unit provides a significant working area, making it especially suitable for sites with difficult access.

SPECIFICATIONS

Engine Power55 Kw
Max. diameter – Kelly Bar450-1200 mm (under mast)
450-850 mm (front ma
Max. depth – Kelly Bar27 m (9 elements)
22 m (7 elements)
Max. diameter – CFA750 mm
Max. depth – CFA11 m
Kelly Bar configuration weight16.300 Kg
CFA configuration weigh17.500 Kg
Learn More

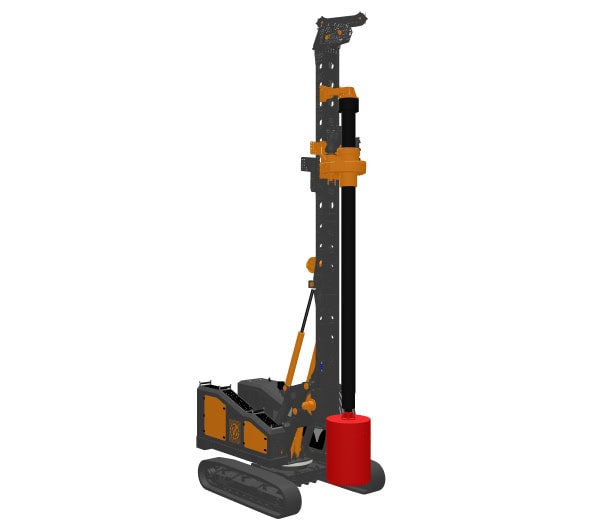

MARINI MR-P 750 BP

The latest addition but also the highest performing, the MR-P 750 is the ultimate borehole and CFA pile-drilling unit. With its 4 different configurations-CPD (Cylinder Pull Down), MPD (Motor Pull Down), LH (Low Headroom) and CFA (Continuous Flight Augers)-this machine is perfect for the most demanding foundation applications.

SPECIFICATIONS

Engine Power103 KW
Max. diameter – Kelly Bar
1200 mm
Max. depth – Kelly Bar
32 mt
Max. diameter – CFA
1000 mm
Max. depth – CFA16.5 mt
Kelly Bar configuration weight
28,000 kg
CFA configuration weight27,500 kg
Learn More

MARINI MR-P 750 CFA

The latest addition but also the highest performing, the MR-P 750 is the ultimate borehole and CFA pile-drilling unit. With its 4 different configurations-CPD (Cylinder Pull Down), MPD (Motor Pull Down), LH (Low Headroom) and CFA (Continuous Flight Augers)-this machine is perfect for the most demanding foundation applications.

SPECIFICATIONS

Engine Power103 KW
Max. diameter – Kelly Bar1200 mm
Max. depth – Kelly Bar32 mt
Max. diameter – CFA1000 mm
Max. depth – CFA16.5 mt
Kelly Bar configuration weight28.000 Kg
CFA configuration weight27.500 Kg
Learn More

MARINI Quarries Group MR Line

Click below to see our other models:

MR LINE

hydraulic portable drilling rigs, perfect for rope access drilling, slopes, consolidation, anchors.

THE RANGE

MR-A LINE

hydraulic & pneumatic drilling mast attachments suitable for excavators & tele-handlers.

THE RANGE

MR-C LINE

crawler drilling rigs suitable for micro-drilling operations in civil engineering and foundation.

THE RANGE

MR-P LINE

compact and versatile crawler piling rigs for bored piling using the Kelly Bar system.

YOU ARE HERE

MR-S LINE

hydraulic & penumatic light drilling slides designed to be attached on frames, such as scaffolding etc.

THE RANGE
