MARINI MR-C LINE

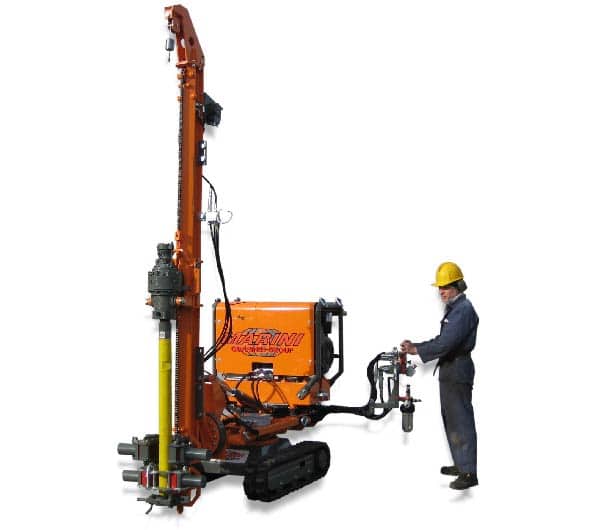

MARINI MR-C 10
Marini MR – C 10 hydraulic manual drilling rig is designed for horizontal, vertical or inclined holes.
The self-propelled unit with rubber tracks can be equipped with rotary head or separate roto-percussion drifter.
SPECIFICATIONS
| Engine Power | 17 Kw |
| Retract force | 1500 daN |
| Max. Clamp Passage | 188 mm |
| Weight | 1300 kg |

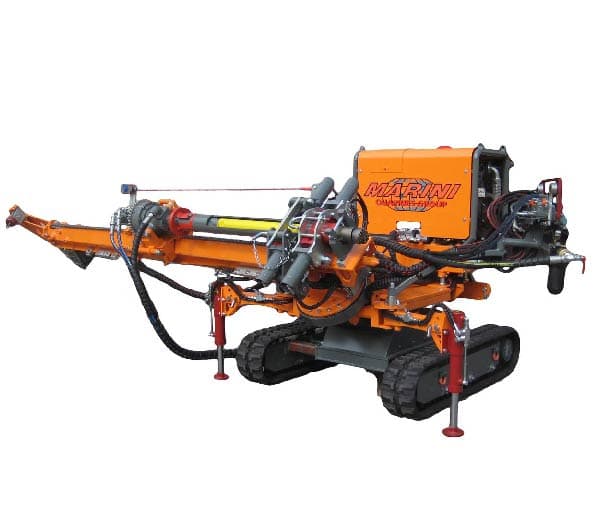

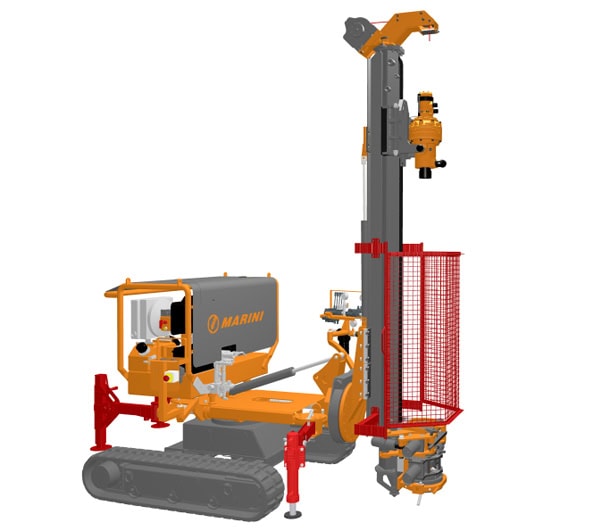

MARINI MR-C 15
Marini The MR – C 15 hydraulic manual drilling rig is designed for horizontal, vertical or inclined holes. The self-propelled unit with rubber tracks can be equipped with rotary head or separate roto-percussion drifter.
SPECIFICATIONS
| Engine Power | 17 Kw |
| Retract force | 2500 daN |
| Max. Clamp Passage | 188 mm |
| Weight | 1500 kg |

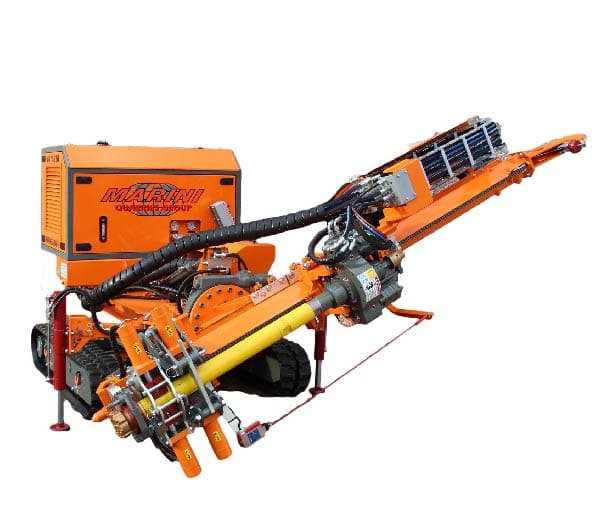

MARINI MR-C 20
The MR – C 20 hydraulic radio-controlled drilling rig is designed for horizontal, vertical or inclined holes. The self-propelled unit with rubber tracks can be equipped with rotary head or separate roto-percussion drifter.
SPECIFICATIONS
| Engine Power | 22 – 33 Kw |
| Retract force | 2500 – 3500daN |
| Max. Clamp Passage | 188 mm |
| Weight | 2700 – 3500 kg |

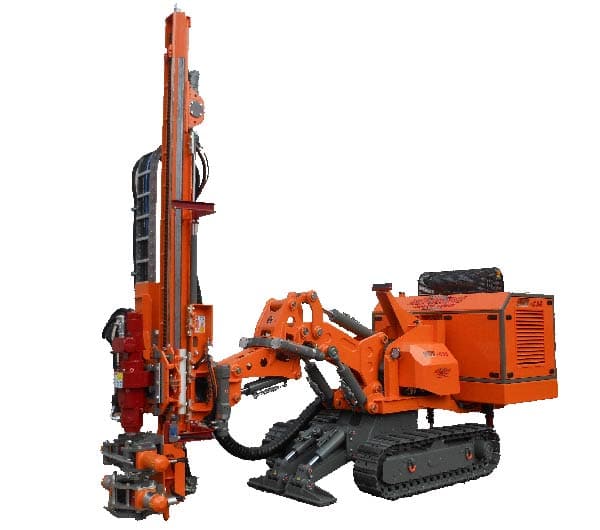

MARINI MR-C 35
Marini MR-C 35 radio-controlled hydraulic drilling rig, designed with single section arm, allows horizontal, vertical or inclined holes to be drilled in any direction. The self-propelled unit with steel tracks can be equipped with rotary head or separate roto-percussion drifter.
SPECIFICATIONS
| Engine Power | 41 – 55 Kw |
| Retract force | 5000 daN |
| Max. Clamp Passage | 230 mm |
| Weight | 6000 kg |

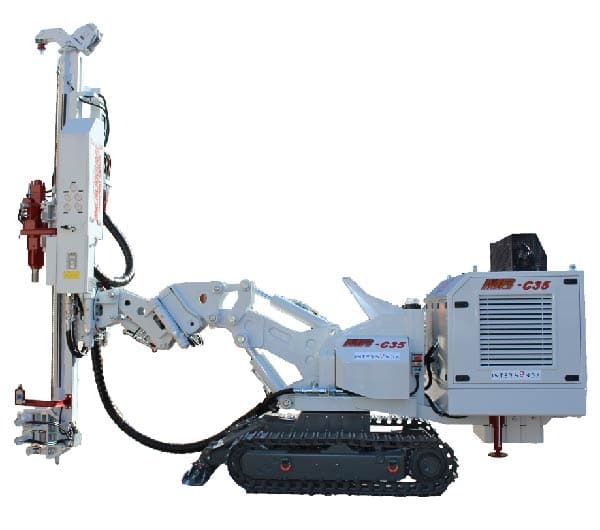

MARINI MR-C 35 A
Marini MR-C 35A radio-controlled hydraulic drilling rig, designed with single arm and “mast release” system for self-propelled applications , allows horizontal, vertical or inclined holes to be drilled in any direction. The self-propelled unit with steel tracks can be equipped with rotary head or separate roto-percussion drifter.
SPECIFICATIONS
| Engine Power | 41 – 55 Kw |
| Retract force | 2500 daN |
| Max. Clamp Passage | 188 mm |
| Weight | 6000 kg |
MARINI MR-C 50
The MR-C 50 radio-controlled hydraulic drilling rig, designed with single telescopic section arm and removable power-pack, allows horizontal, vertical or inclined holes to be drilled in any direction with considerable power. The self-propelled unit with steel tracks can be equipped with rotary head or separate roto-percussion drifter.
SPECIFICATIONS
| Engine Power | 85 – 95 Kw |
| Retract force | 5000 daN |
| Max. Clamp Passage | 310 mm |
| Weight | 7500 kg |

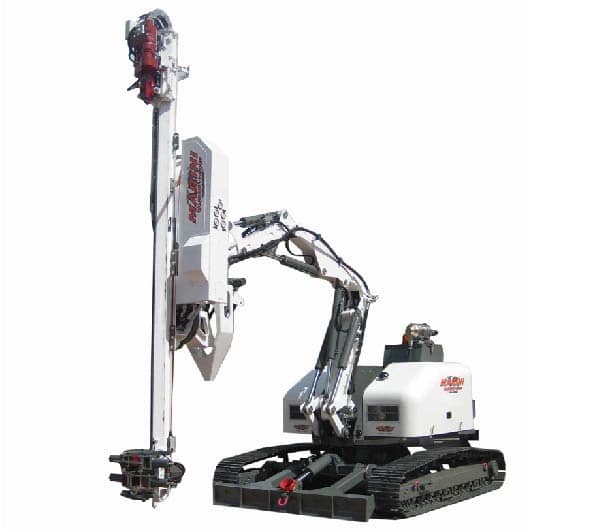

MARINI MR-C 80
Marini MR-C 80 radio-controlled hydraulic drilling rig, designed with triple section arm, allows horizontal, vertical, inclined and vaulted holes to be made with extremely comfort. The self-propelled unit with steel tracks can be equipped with rotary head or separate roto-percussion drifter.
SPECIFICATIONS
| Engine Power | 85 Kw |
| Retract force | 2500 daN |
| Max. Clamp Passage | 188 mm |
| Weight | 9000 kg |

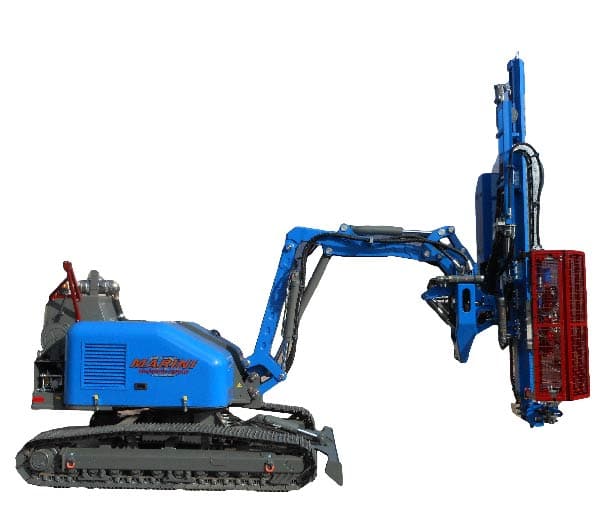

MARINI MR-C 85
Marini MR-C 85 radio-controlled hydraulic drilling rig, designed with double section arm, allows horizontal, vertical, inclined and vaulted holes to be made with extreme comfort. The self-propelled unit with steel tracks can be equipped with rotary head or separate roto-percussion drifter.
SPECIFICATIONS
| Engine Power | 85 Kw |
| Retract force | 4000 daN |
| Max. Clamp Passage | 230 mm |
| Weight | 10000 kg |

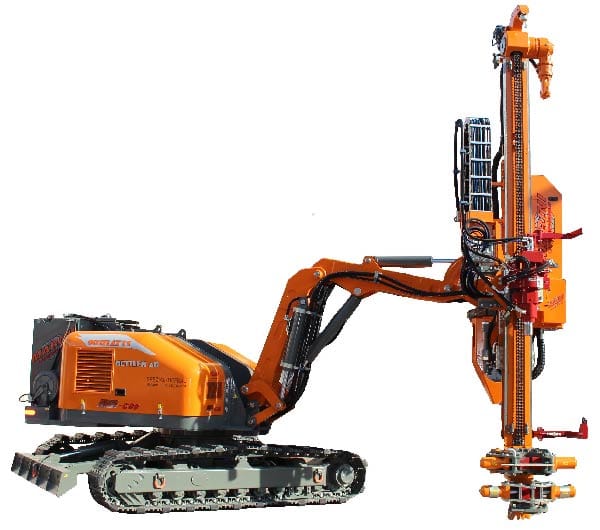

MARINI MR-C 90
The MR – C 95 radio-controlled drill rig, designed with single section arm and double turn table system allow the maximum flexibility and versatility for vertical, horizontal and inclined drilling operations such as micropiles, tiebacks, anchors and hollow bars installation. The self-propelled unit with steel tracks can be equipped with rotary head or separated roto-percussion drifter.
SPECIFICATIONS
| Engine Power | 115 Kw |
| Retract force | 6000daN |
| Max. Clamp Passage | 310 mm |
| Weight | 15000 kg |

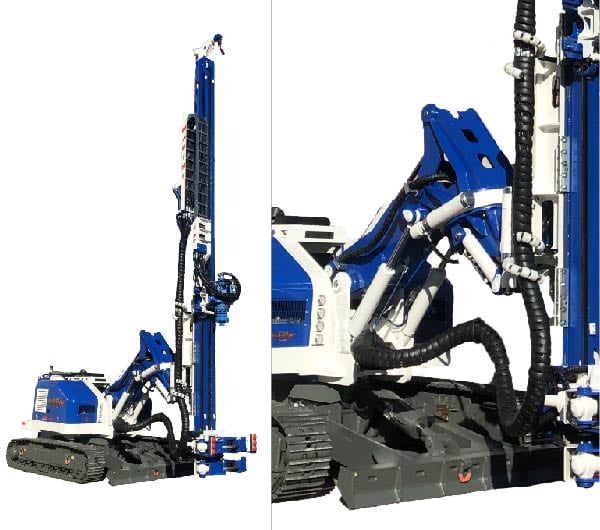

MARINI MR-C 95
The MR – C 95 radio-controlled drill rig, designed with single section arm and double turn table system allow the maximum flexibility and versatility for vertical, horizontal and inclined drilling operations such as micropiles, tiebacks, anchors and hollow bars installation. The self-propelled unit with steel tracks can be equipped with rotary head or separated roto-percussion drifter.
SPECIFICATIONS
| Engine Power | 104 / 128 Kw |
| Retract force | 8000 daN |
| Max. Clamp Passage | 365 mm |
| Weight | 22000 kg |
